IP Endpoints
CDD1 - DIA (Does it All, Does it Better)
The DIA is the Cadillac of the IP Endpoints! This device comes with everything, but the kitchen sink! Boasting a HD 23.8" customizable screen, two 20Watt speakers, a microphone and flashers; this unit can do it all! The screen displays the time, weather, bell schedule, logo, has customizable scrollable text (across the top) and daily announcements on the side; it can do it all! It can even play Visual Events initiated through G2 Communicator!
The DIA features:
- A programmable USB call switch for multiple events
- Supports linear multi-mic and circular multi-mic microphone array layouts
- Play Visual Events from the G2 Communicator UI
- Powered via PoE++ or PoE+ with wall power
These DIA devices are great for replacing your standard analog clock in classrooms, offices, cafeterias and are great for sending visual events or alerts anywhere these units are located!
CIPSPKMDC - IP Speaker with Microphone, Digital Clock and LCD Screen
The G2 Network speaker (CIPSPKMDC) is a comprehensive, high-performance SIP enabled speaker. With the built-in microphone, the operator can deliver two-way communication at any time! The LCD display shows real-time information and eliminates the need for a separate clock system! In the case of an emergency, the LCD display can trigger scrolling alert notifications for enhanced visibility.
This IP Speaker features:
- 4.5" 8Ω, 10Watt Network Speaker
- Supports customizable scrolling alerts with custom background colors and text content; making it suitable for various industries. Viewable from 65 feet
- PoE supported; making it easy to connect into your local area networks from your PoE switch with a CAT 5/6 cable; no additional power cables are needed
- Standard SIP protocol is implemented; you can register the CIPSPKMDC into any IPPBX or PA system
- When used with a call switch, you can trigger a task or extension from the room with the speaker
- Four additional knockout holes are implemented along each side of the enclosure, allowing cables to plug into the speaker in any direction
These IP Speakers are perfect for school rooms, offices, warehouses and more!
CIPSPKM - IP Speaker with Microphone
The G2 Network speaker (CIPSPKM) is a comprehensive, high-performance SIP enabled speaker. With the built-in microphone, the operator can deliver two-way communication at any time!
This IP Speaker features:
- 4.5" 8Ω, 10Watt Network Speaker
- 320Kbps superior quality MP3 music files and streamed media music supported; click to play music, announcements, intercoms, schedule and paging are all supported
- PoE supported; making it easy to connect into your local area networks from your PoE switch with a CAT 5/6 cable; no additional power cables are needed
- Standard SIP protocol is implemented; you can register the CIPSPKM into any IPPBX or PA system
- When used with a call switch, you can trigger a task or extension from the room with the speaker
- Four additional knockout holes are implemented along each side of the enclosure, allowing cables to plug into the speaker in any direction
These IP Speakers are perfect for school rooms, offices, warehouses and more!
CIPSPKCCI15 - IP Cut-In Speaker
The IP Cut-In Speaker consists of a 5.25" woofer and a 1" tweeter; providing premium sound quality which enhances the audience experience! Supports CCWS1 call switch Mic with push-to-talk button to achieve the talk back functionality with this unit!
This IP Speaker features:
- 8Ω, 15Watt Network Cut-In Ceiling Speaker
- Built in SIP support; SIP paging using wideband G.722 codec which provides crystal clear HD voice
- Standard PoE (IEEE 802.3at) support; simple and easy installation with a single network cable, external power supply can be used if required
- Supports Multicast and Peer-to-Peer (P2P) to share data between devices without a central server while the devices use under the same local network
- Built-in amplifier with local or server controlled volume control output level; assuring full and consistent coverage and also the audio comfort and flab
- Supports three lines SIP account; in which the users may register the endpoint in more than one system for achieving different functionality purposes
These IP Speakers are perfect for schools, offices, and other locations! Perfect for the customer that would like to go the full IP system route!
CIPSPKWM15 - IP Cabinet Speaker
The IP Cabinet Speaker consists of a 5.25" woofer and a 1.5" tweeter; providing premium sound quality which enhances the audience experience! Supports CCWS1 call switch Mic with push-to-talk button to achieve the talk back functionality with this unit!
This IP Speaker features:
- 8Ω, 15Watt Network Cabinet Speaker
- Built in SIP support; SIP paging using wideband G.722 codec which provides crystal clear HD voice
- Standard PoE (IEEE 802.3at) support; simple and easy installation with a single network cable, external power supply can be used if required
- Supports Multicast and Peer-to-Peer (P2P) to share data between devices without a central server while the devices use under the same local network
- Built-in amplifier with local or server controlled volume control output level; assuring full and consistent coverage and also the audio comfort and flab
- Supports three lines SIP account; in which the users may register the endpoint in more than one system for achieving different functionality purposes
These IP Speakers are perfect for schools, offices, and other locations! Perfect for the customer that would like to go the full IP system route!
CIPSPKCM30 - IP Column Speaker
The IP Column Speaker is a triune-speaker design consisting of a two (2) 3.25" woofer and a 1" tweeter; providing premium sound quality which enhances the audience experience!
This IP Speaker features:
- 4Ω, 30Watt Network Column Speaker
- With a 3.5mm audio input jack; can playback audio from devices such as mobile phones, computers, mp3 devices and more
- Built in SIP support; SIP paging using wideband G.722 codec which provides crystal clear HD voice
- Standard PoE (IEEE 802.3at) support; simple and easy installation with a single network cable, external power supply can be used if required
- Supports Multicast and Peer-to-Peer (P2P) to share data between devices without a central server while the devices use under the same local network
- Built-in Class-D amplifier with local or server controlled volume control output level; assuring full and consistent coverage and also the audio comfort and flab
- Supports three lines SIP account; in which the users may register the endpoint in more than one system for achieving different functionality purposes
- IP65 protection ratings and thermal durability; making it suitable for indoor or outdoor installations
- Various sensors can be integrated; like smoke sensors, infrared sensors and strobes
These IP Speakers are perfect for schools, offices, and other locations! Perfect for the customer that would like to go the full IP system route!
CCIPPH15 - IP Paging Horn (15Watt)
The 15Watt IP Paging Horn is a network horn loudspeaker with network audio decoding and a digital amplifier!
This IP Paging Horn features:
- 15Watt Network Paging Horn Speaker
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than one (1) second
- IP67 water-proof horn speaker available at 15W
- Supports MP3, WMA, WAV and more decoding
- With a standard RJ45 network interface; it supports online firmware upgrades
These IP Horn Speakers are perfect for gyms, exterior locations and small outdoor fields. Great for the customers that decide to go the full IP route!

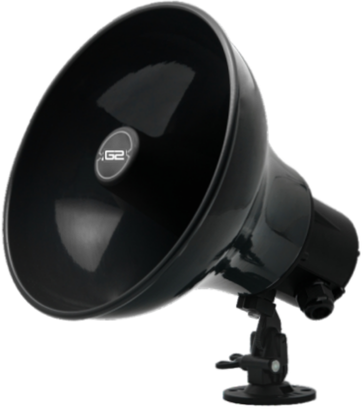

CCIPPH30 - IP Paging Horn (30Watt)
The 30Watt IP Paging Horn is a network horn loudspeaker with network audio decoding and a digital amplifier!
This IP Paging Horn features:
- 30Watt Network Paging Horn Speaker
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than one (1) second
- IP67 water-proof horn speaker available at 30W
- Supports MP3, WMA, WAV and more decoding
- With a standard RJ45 network interface; it supports online firmware upgrades
These IP Horn Speakers are great for audio coverage in large outdoor areas! Great for customers that decide to go the full IP route!
